Sequences

Sequence diagrams are used to detail even further the interactions between actors and systems during a use case, namely doing so by adding a notion of temporality (event chronology)

We will not show here every sequence for each use case (for it is tedious, and in our case, quite repetitive for just CRUD operations), but feel free to get inspired by the example below, which is one of the most complex use case of the application

Example

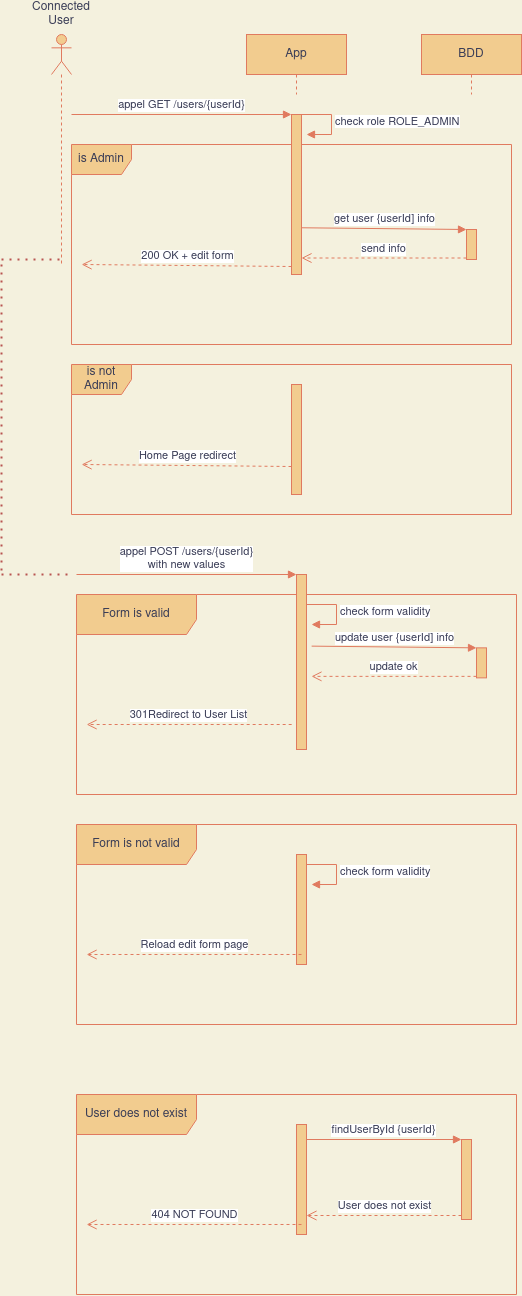

Sequence diagram of the interactions when an Administrator tries to edit the info of a User:
